Trolley Mounted Bitumen Sprayer
“At Verge, we focus on quality over quantity. We deeply understand equipment, applications, projects, and the construction industry as a whole.”
The Uncompromised Quality Standard
Every Trolley-Mounted Bitumen Sprayer engineered by Accel Infratech India Pvt. Ltd. under our registered brand Verge® is built on our strict philosophy of zero manufacturing compromise. Utilizing 100% high-premium quality parts—including heavy-duty towing chassis frames, reliable positive-displacement pumps, efficient heating burners, and robust thermal insulation—our compact sprayers guarantee reliable binder application, operator safety, and long-term durability across tight-access and remote job sites.
Â
Machine Overview: What the Trolley-Mounted Sprayer Is & How It Operates

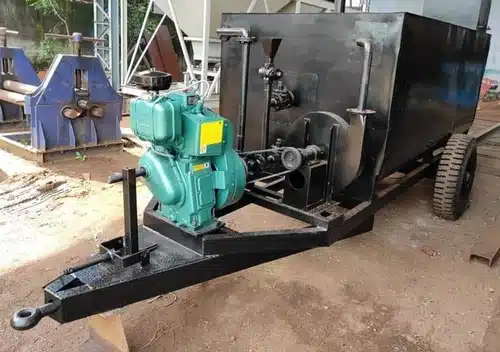

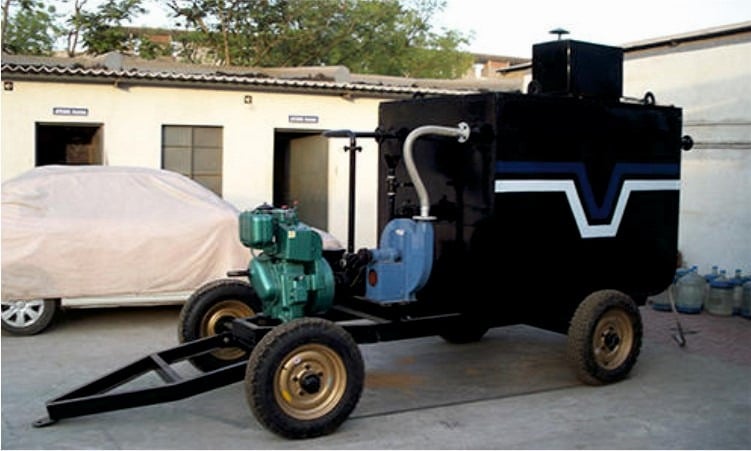

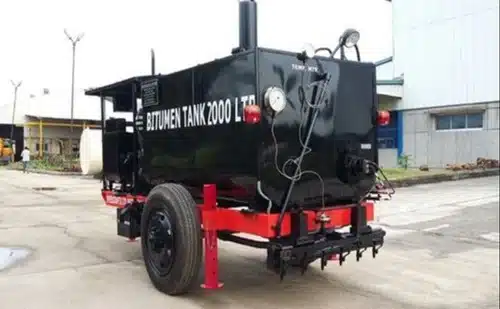

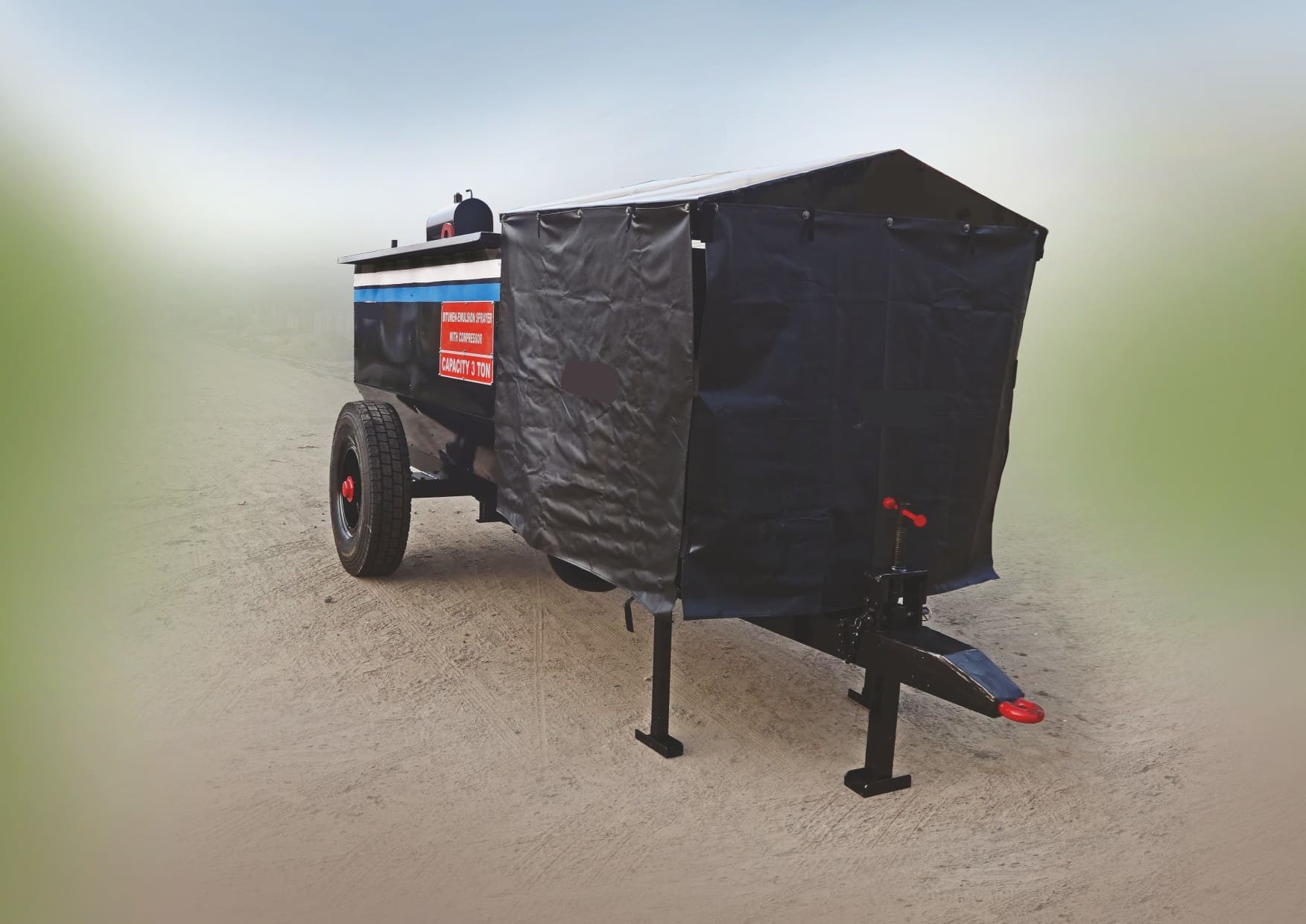

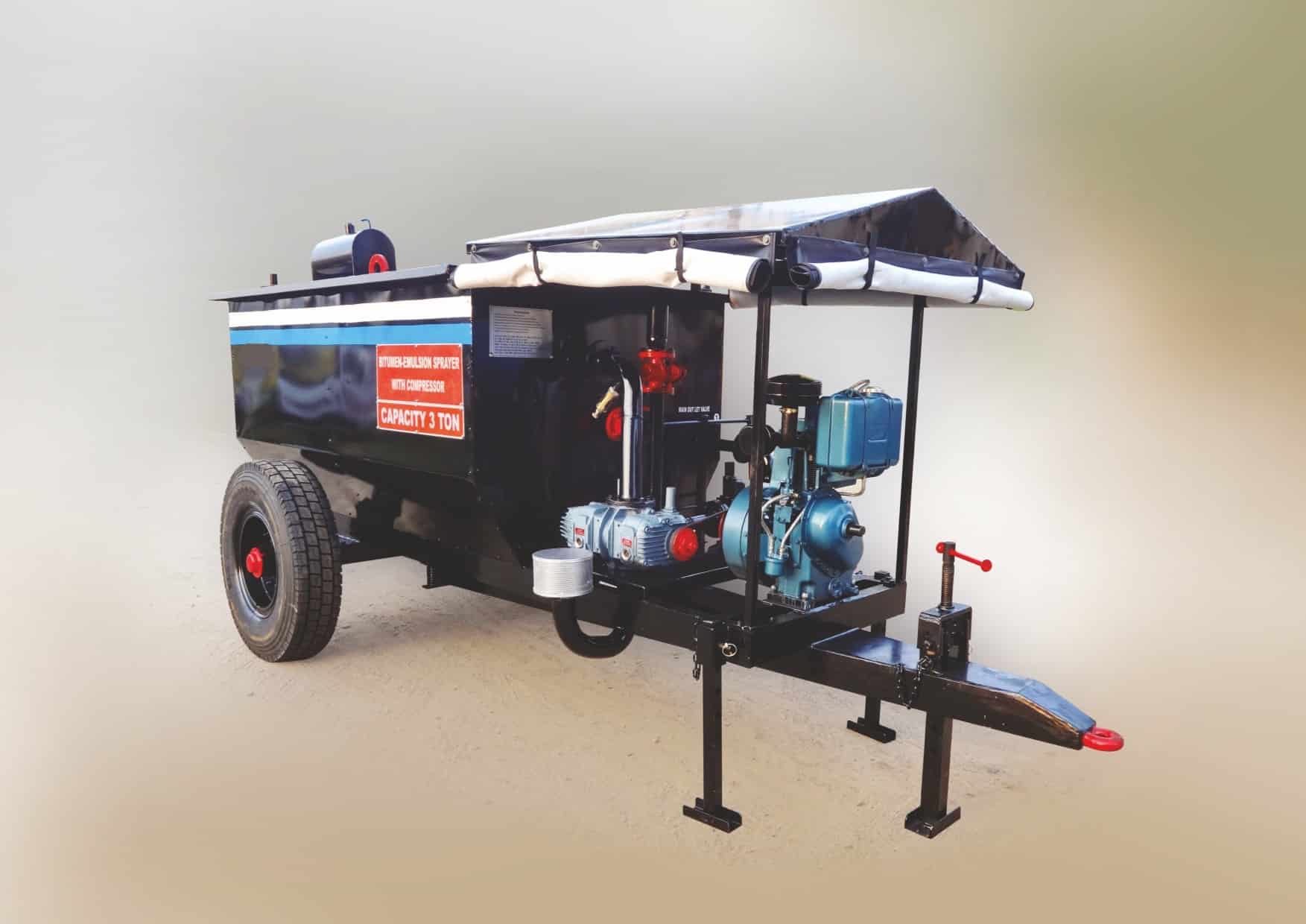

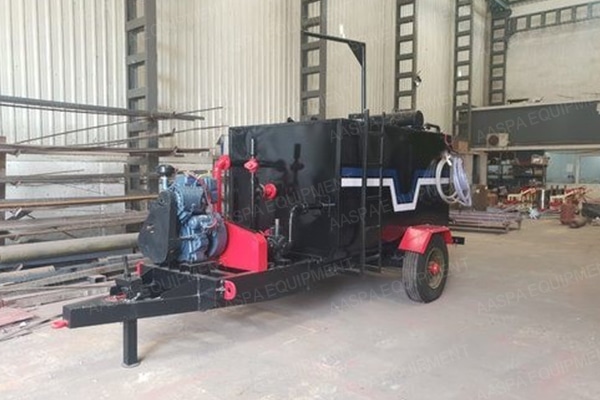

The Trolley-Mounted Bitumen Sprayer is a compact, highly mobile thermal binder application unit designed for small-scale road patching, pothole repairs, tack coat application in confined areas, and edge sealing. Mounted on a sturdy pneumatic-tired towing trolley, this self-contained machine heats and sprays hot bitumen or emulsion efficiently without requiring a large commercial truck chassis.
Â
Complete Operational Workflow
- Binder Loading & Thermal Heating: Pre-heated liquid bitumen is filled into the insulated tank. An integrated diesel-fired burner or heating flue maintains or elevates the binder to ideal spraying viscosity (110°C to 150°C).
- Positive-Displacement Pumping: A compact, high-torque engine-driven bitumen pump pressurizes the liquid binder securely through internal valving.
- Flexible Spraying Operation: Operators utilize a flexible hand-lance spray nozzle (or a compact mini spray bar) to apply precise tack coats, edge seals, or patch repair patches without waste.

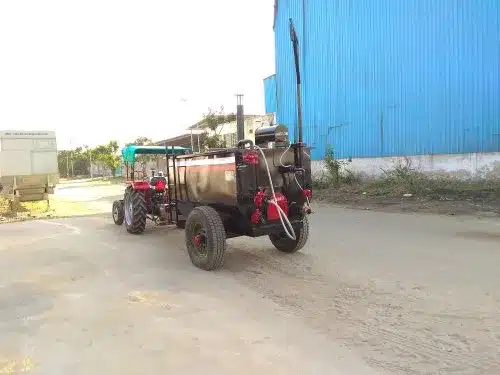

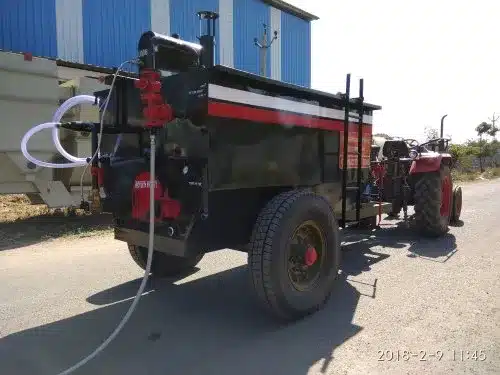

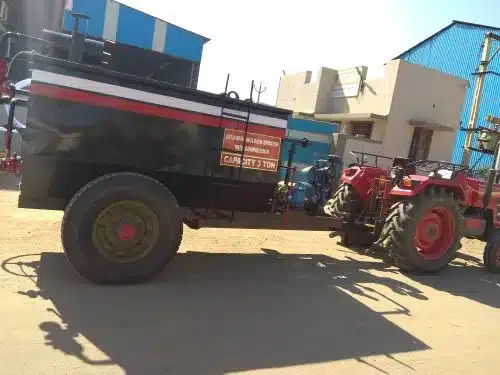

- Maneuverability & Towing: The balanced single-axle trolley chassis is equipped with a standard tow-hitch, allowing easy towing behind light utility vehicles, tractors, or small trucks directly to job sites.
Technical Specifications, Capacity & Power
| Parameter | Technical Specification Range |
| Standard Tank Capacity | 1000 Liters to 3000 Liters |
| Chassis Configuration | Single-Axle Towing Trolley with Heavy-Duty Pneumatic Tires & Jack Stand |
| Spraying Mechanism | Flexible Hand-Lance Spray Nozzle with Insulated Hose / Mini Spray Bar |
| Pump Type | Engine-Driven Positive Displacement Gear Pump |
| Heating System | Integrated Diesel Burner / Heating Flue Assembly |
| Tank Insulation | 50 mm High-Density Rockwool Insulation with Protective Outer Cladding |
| Power Source | Air-Cooled Diesel Engine or Petrol Engine Unit |
| Part & Build Quality | 100% Premium Quality Parts (Zero manufacturing compromise) |
Key Applications & Target Global Markets
Primary Infrastructure Applications
- Pothole Patching & Road Maintenance: Rapid binder application for localized patching and surface repairs.
- Tack Coat in Confined Spaces: Precision spraying for narrow alleyways, bridge decks, parking lots, and shoulders where large trucks cannot maneuver.
- Edge Sealing & Joint Coating: Applying adhesive binder along asphalt joint edges before laying new lanes.
- Rural & Municipal Utility Repairs: Cost-effective binder distribution for small-scale community road projects.
Target Strategic & International Markets
- India: Municipal road maintenance, smart city urban repairs, and rural infrastructure.
Â
- Zimbabwe: Regional road patching and maintenance fleets.
Â
- Kenya: Urban municipal road repairs and feeder road maintenance.
Â
- Tanzania: Regional transport link upkeep.
Â
- Nigeria: Municipal road maintenance and suburban patching.
Â
- Ghana: Local road rehabilitation projects.
Â
- Botswana: Remote site transport link maintenance.
Â
- Malawi: District road repair programs.
Â
- Congo (DRC / Republic of Congo): Localized infrastructure upkeep.
Â
- Gambia: Municipal road resurfacing.
Â
- Djibouti: Port area patching and maintenance.
Â
- Oman: Industrial estate road repairs and municipal maintenance.
Â
Comparative Study: Truck-Mounted Bitumen Pressure Distributor vs. Trolley-Mounted Bitumen Sprayer
| Comparison Feature | Truck-Mounted Bitumen Pressure Distributor | Trolley-Mounted Bitumen Sprayer |
| Primary Capacity Range | Large scale: 4,000 Liters to 12,000 Liters | Compact scale: 1000 Liters to 3000 Liters |
| Chassis & Mobility | Mounted on heavy commercial truck OEM chassis | Single-axle pneumatic tire towing trolley (towed by utility vehicle/tractor) |
| Application Method | Wide rear-mounted spray bar (2.4m to 4.5m) for continuous highway runs | Flexible hand-lance spray nozzle (and optional mini bar) for localized work |
| Primary Project Fit | National highways, expressways, long-distance paving | Pothole patching, edge sealing, parking lots, narrow urban lanes |
| Operational Footprint | Large turning radius; requires open highway access | Highly agile; operates easily in confined spaces or tight city streets |
| Investment & Fuel Cost | Higher capital outlay and heavy truck operating costs | Low initial investment, highly economical fuel consumption |
| Build Quality Standard | 100% Premium Quality Parts (Accel Infratech standard) | 100% Premium Quality Parts (Accel Infratech standard) |
For Distributors & Interested Dealers
Partner Advantages for Overseas Dealers & Distributors
- Compact Export Logistics: Extremely compact dimensions allow multiple units to be packed easily inside standard shipping containers alongside larger road equipment.
- Agile Field Deployment: Requires no specialized commercial truck registration in many regions, making it an ideal municipal maintenance asset.
- Complete After-Sales Support: Shipped with spare lance nozzles, pump seal kits, burner components, and straightforward maintenance documentation.
Applications
- Road Construction: Ideal for applying bitumen in the construction of roads, highways, and pavements.
- Maintenance Projects: Suitable for road repair and maintenance, ensuring a smooth and durable surface.
- Urban Infrastructure: Perfect for municipal projects including city streets and parking lots.
Benefits
- Enhanced Efficiency: Large capacity and efficient spraying system reduce project timelines and labor costs.
- Flexibility: Customizable features allow adaptation to specific project requirements, providing tailored solutions.
- Cost-Effective Operation: Dual fire system offers fuel flexibility, potentially lowering operational costs.
- Reliable Performance: Durable construction and high-quality components ensure consistent and reliable operation in various conditions.
- Improved Quality: Integrated air compressor ensures a clean surface for better bitumen adhesion, enhancing the overall quality and durability of the road.
Conclusion
Our Trolley Mounted Bitumen Sprayers are the perfect solution for efficient and precise bitumen application in road construction and maintenance. With customizable options and robust design, these sprayers offer exceptional performance and reliability, ensuring high-quality results in every project. Contact us today to learn more about our bitumen sprayers and how they can meet your specific needs.
Frequently Asked Questions?
What is a Trolley-Mounted Bitumen Sprayer used for?
It is a compact, towable machine designed for small-scale road maintenance, pothole patching, edge sealing, and applying tack coats in confined areas (such as parking lots, bridge decks, and narrow streets) where large commercial distributor trucks cannot operate.
How does the trolley sprayer differ from a truck-mounted pressure distributor?
A truck-mounted distributor features a large tank (4,000L to 12,000L) mounted on a commercial truck chassis with a wide rear spray bar designed for continuous highway paving. A trolley sprayer features a compact tank (1000L to 3000L) on a towable single-axle chassis and uses a flexible hand-lance spray nozzle for targeted, localized patching work.
How is the bitumen kept hot in the trolley sprayer?
The tank is wrapped in high-density rockwool thermal insulation and heated via an integrated diesel-fired burner or heating flue assembly, ensuring the binder remains at the correct spraying temperature throughout operation.
What vehicles can tow the trolley-mounted sprayer?
Thanks to its balanced single-axle design and standard tow-hitch, it can be easily towed behind light tractors, or utility vehicles directly to the work site.
Does the trolley sprayer compromise on component quality?
Absolutely not. True to our core philosophy, every trolley sprayer is built using 100% identical high-premium parts and rigorous manufacturing standards, ensuring uncompromised reliability in the field.
