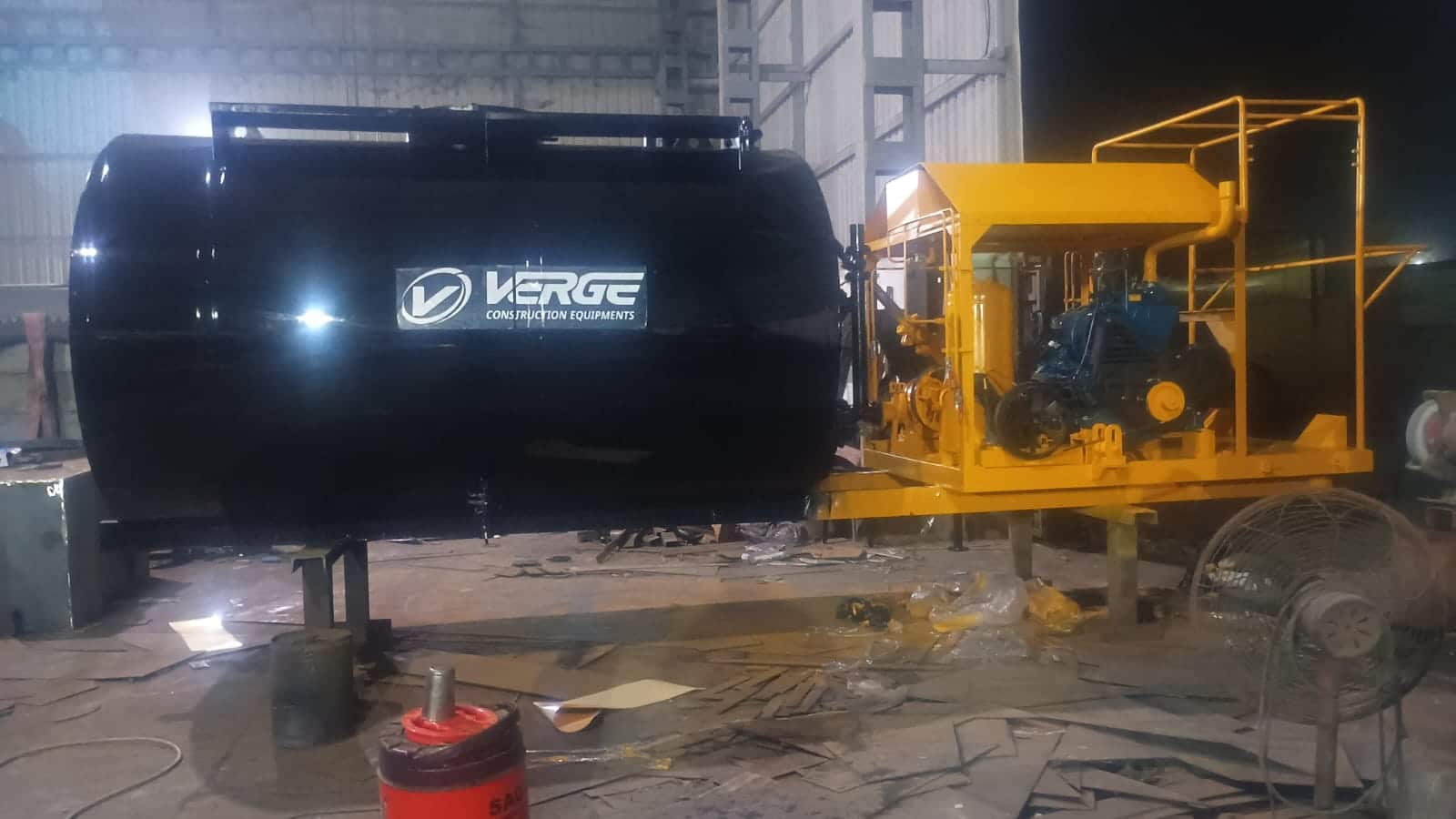

Bitumen Pressure Distributor
A bitumen pressure distributor is essentially a heavy-duty, specialized truck designed to spray hot liquid asphalt (bitumen) evenly onto a road before laying down fresh pavement.
Think of it as a glue applicator for road construction. Before asphalt is poured, a bitumen distributor sprays a consistent layer of hot liquid binder over the surface. This creates a strong bond between the old road base and the new asphalt, keeping the surface durable and waterproof.
How It Works
-
Heated Insulated Tank: Stores liquid bitumen and keeps it at high temperatures (often around 150°C to 180°C) so it stays fluid and doesn’t harden inside the tank.
-
Pressure Pump System: Drives the hot binder through the system at a controlled rate, ensuring an even spray pattern regardless of truck speed.
-
Rear Spray Bar: A wide bar mounted at the back with multiple nozzles that spray a smooth, uniform coat across the entire width of the lane in a single pass.
-
Hand Spray Gun: An attached spray wand for tight corners, curbs, and patch repairs where the main spray bar can’t reach.
Why It Matters
Pouring asphalt without an even layer of bitumen leads to peeling, cracks, and early potholes. Using a pressure distributor guarantees exact temperature control and precise coverage, giving road work the strength to withstand heavy traffic and harsh weather.
Â
Key Applications
-
Prime Coating: Sprayed directly onto untreated gravel or soil base courses to seal pores, bind loose particles, and prepare the surface for asphalt layers.
-
Tack Coating: Applied between existing asphalt layers or old pavement and new overlays to act as a glue, preventing slippage under heavy traffic.
-
Chip Sealing (Surface Dressing): Sprayed over a road surface right before dropping aggregate stone chips, creating a durable, low-cost protective seal layer.
-
Pothole & Crack Repairs: Using the attached hand spray wand to spot-treat damaged areas, patch edges, and seal joint seams during road maintenance.
-
Shoulder & Runway Maintenance: Used on highway shoulders, airport runways, and parking lots to apply protective seal coats against weather wear.
Major Benefits
-
Uniform Coverage: Hydraulic pressure controls deliver an exact, consistent spray rate across the entire width of the lane, eliminating thin spots or binder puddles.
-
Stronger Road Bond: Precise application ensures proper adhesion between road layers, stopping premature peeling, cracking, and rutting.
-
Faster Project Execution: High-capacity tanks and wide spray bars cover vast road surfaces in minutes, saving significant labor and machine time.
-
Material & Cost Efficiency: Automated controls ensure exact binder output, preventing costly material waste and lowering overall project expenses.
-
Temperature Control: Built-in heating systems keep bitumen at its ideal fluid temperature throughout the job, preventing equipment clogs and uneven sprays.
