Key Features
Hydraulic Drive System:
- Powered by a reliable hydraulic motor, providing consistent and powerful sweeping performance.
- Adjustable hydraulic flow to match the specific requirements of different tractors and sweeping conditions.
Durable Construction:
- Heavy-duty frame made from high-strength steel for enhanced durability and longevity.
- Resistant to wear and tear, ensuring minimal maintenance and long-term use.
Versatile Sweeping Mechanism:
- Equipped with high-quality poly and steel mix brushes, suitable for sweeping various types of debris, including dirt, gravel, leaves, and light snow.
- Adjustable brush height and angle to cater to different surface types and sweeping needs.
Easy Attachment and Operation:
- Quick and secure mounting system compatible with most standard tractor hitch types (Category I and II).
- Intuitive controls for easy operation, allowing the operator to adjust sweeping speed and direction effortlessly.
Efficiency and Productivity:
- Wide sweeping path of 2.1 meters, enabling efficient coverage of large areas in minimal time.
- High-capacity debris collection hopper with easy dumping mechanism, reducing downtime for emptying.
Safety and Visibility:
- Enhanced visibility with strategically placed reflectors and optional LED lighting for safe operation in low-light conditions.
- Protective guards and shields to prevent debris from causing damage or injury.
Applications
- Municipal Services: Ideal for maintaining clean and safe streets, sidewalks, and public spaces.
- Construction Sites: Efficiently clears construction debris, ensuring a safer and more organized work environment.
- Agricultural Use: Keeps farm roads and pathways clear of mud, leaves, and other debris, promoting better accessibility and hygiene.
- Industrial Areas: Maintains cleanliness in factories, warehouses, and logistics hubs, contributing to better operational efficiency.
Benefits
- Cost-Effective Solution: Reduces the need for manual labor and separate cleaning equipment, offering a cost-efficient sweeping solution.
- Environmental Impact: Promotes cleaner environments by efficiently removing debris and preventing pollutants from entering waterways.
- Enhanced Productivity: Streamlines the cleaning process, allowing operators to cover larger areas in less time with less effort.
Technical Specifications:
Model | VRS – 2100 |
Mounting / Towing | Tractor |
Working Width | 2.10 Meter (2100 mm) |
Sweeping Width | 2.1 Meter (2100 mm) |
Sweeping Adjustment | 45 Degree Base Adjustable Both Side as per Slope of the Road |
Supporting Wheel | Two Heavy Duty Small Wheels (Rubber Molded) Dia. 200 X 50 mm. Adjustable Height with Dust Caps. |
Material of Brush | PPNÂ Nylon Brush 3 mm (520 mmX 50mmX 750 mm) |
Brush Size | Dia. 520 mm |
Qty of Brush | 13 Nos. |
Dust garbage collection Container Volume | Min. 150 – Max 150 Kg. Lift. |
Dust Spread | Normally – Due to Collection Through Bucket |
Working Condition | Tractor Run & Standing Position Both Time Working. |
Hydraulic System Use | Required for Hydraulic Oil Circulation. |
Max. Operating Pressure | 150 Bar |
Minimum Hydraulic Oil Requirement | 20 Ipm |
Hydraulic Drive | 1 – Hydraulic Motor – 16 mps. Fitted to Turn Shaft with Brushes |
Hydraulic Hose Pipe | 02 Nos. Hose Fitted ( 5 Meters ) |
Sweeping Speed | 7 to 10 Km / Hour. |

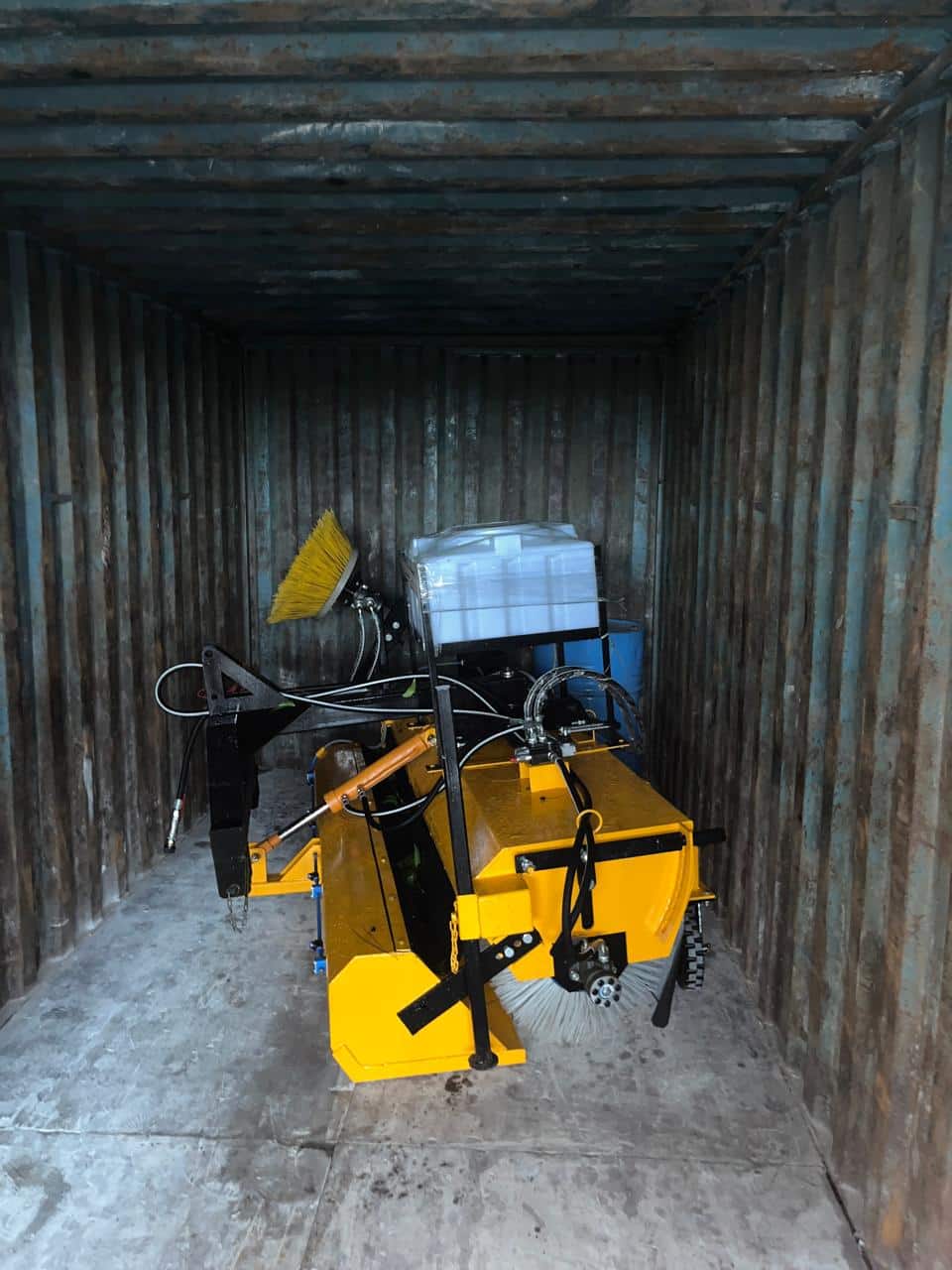

Packing Type | Standard Export Packing |
Overall Dimension (H X W X L) | 1100 mm X 1200 mm X 2650 mm |
Net Weight | 460 Kgs. |
